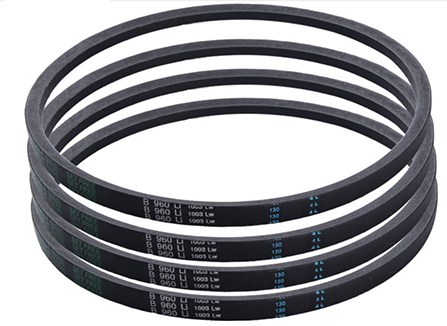

Description
The BELTWORTH can supply many kinds of v-belt, such as wrapped v-belt,
wedge wrapped v-belt, Antistatic V-belt, etc. The advantages of the BELTWORTH
power transmission belt is Wear resistant cover fabric, low-stretch tension
member, specially developed high-grade elastomers, high performance, long
service life, uniform belt geometry, high flexibility, suitable for flat belt
transmission, maximum economy, temperature resistance from -35˚C to +70˚C,
limited oil resistance, antistatic, tolerance stable, matched sets without
sorting, recommended for all general-purpose drives with higher horsepower
ratings. Conventional V-Belt are measured on the inside length (Example A58 marked sizes on the belt, means that, the length of 58" is inside length,
and the outside length is 58")
Detailed Description:
Structure:
Top layer: The material composed of special rubber that is responsible for reducing the possible effects of impact on the belt.
Tensile element (Polyester tensile cords): Constituted of synthetic fiber cords (polyester) that guarantee total power transmission with a very low elongation rate and high resistance to fatigue.
Body Core: A compound prepared to resist the fatigue of compression and to dissipate heat generated by the system; thereby giving the belt a longer life span.
Cover fabric (protective
surface)
A special rubber-impregnated fabric that offers resistance to abrasion. It is
also responsible for the total protection of all the belt's components.
Product
characteristics:
Wear resistant cover fabric,
low-stretch tension member,
specially developed high-grade elastomers,
high performance, long service life,
uniform belt geometry, high flexibility,
suitable for flat belt transmission, maximum economy,
temperature resistance from -35˚C to +70˚C,
Starndard board:
Application:
The BELTWORTH Rubber V Belts are widely used in Blending systems, Choppers, HVAC systems, Lawnmowers, Compressors, Crushers, Scarifier and other mechanical equipment transmissions.
Marking:
