Description

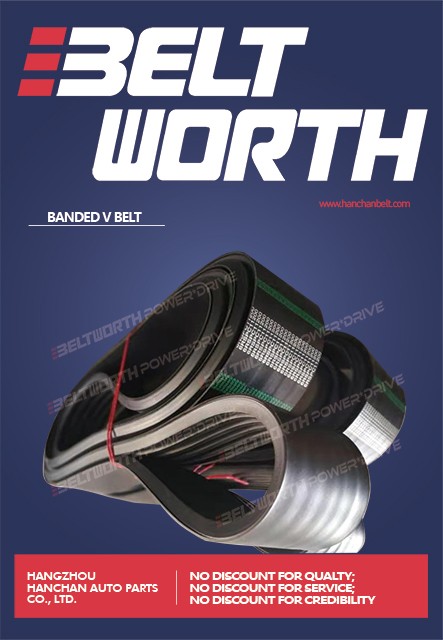

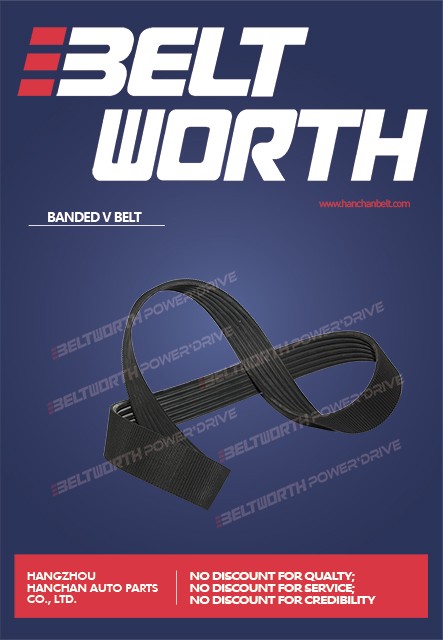

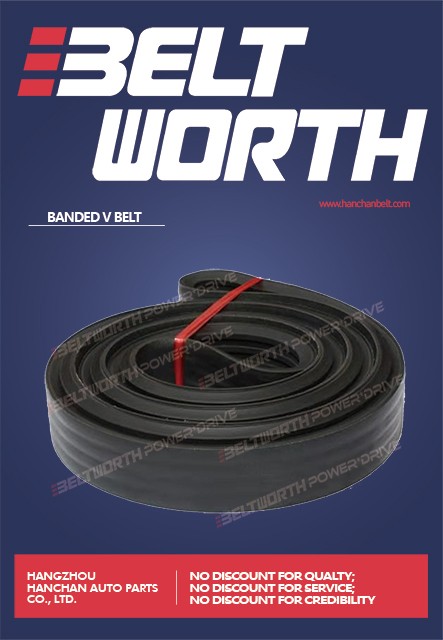

The BELTWORTH V-banded belts and cogged V-banded belts are an excellent choice for virtually any application where increased horsepower capacity or output is needed. Or where conventional, single or multiple belt drives are impractical because of space or weight limitations.
BELTWORTH 's banding process assures smoother, more quiet operation. the specially compounded wrap construction is ideal for clutching operations. And it won't turn over or jump off the drive. It's oil and heat resistant and anti-static, too. Typical applications for banded V-Belts include vertical shaft drives, V-Flat drives and clutching drives. Banded V-Belts are recommended for use where belts vibrations or belt whip causes unsatisfactory results when conventional multiple V-belts are used. They are available in Classical cross sections as (A, B, C, & D), narrow cross sections as, (3V, SV, & 8V). And Metric cross sections as (SPA, SPB, SPC), The Raw edge cogged banded cross sections are: (RAX, RBX, RCX, R3VX, R5VX, R8VX)
Detailed Description:
1. Tope Surface
2. Chloroprene compound with
transverse oriented fiber
3. Polyester tension cord.
maintenance-free
4. Chloroprene compound with
transverse oriented fiber
Characteristics:
1. Maintenance-free
2. Reliable running performance
3. Outstanding transverse stiffness
4. High power transmission
capability
6. Enveloped in special rubber-impregnated fabric
7. Elastomeric material: chloroprene rubber
8. Compact, high working speed transmission and transmission of general motive force
9. Used in transmission devices in harsh conditions such as large power and high impact applications
Application
Most of banded V belts are primarily used for special problem solutions in mechanical engineering and commercial vehicle construction.
The advantages of the BELTWORTH KB banded v belt with aramid tension cords become obvious when dealing with heavy loaded drives in mechanical engineering and in the agricultural machine industry. These BELTWORTH KB provide the highest possible level of reliability wherever high temperature impacts and low adjustment ranges are present.
Profile:
Section
Top width(mm)
Height(mm)
Pitch Distance(mm)
Length Range (inch)
RA(AJ)
13
10
15.9
47"-197"
RB(BJ)
17
13
19
47"-394"
RC(CJ)
22
16
25.5
79"-590"
RD(DJ)
32
21.5
37
157"-590"
RE(EJ)
38
27
44.5
196"-708"
R3V(9NJ)
9.7
9.7
10.3
47"-197"
R5V(15NJ)
15.7
16
17.5
59"-394"
R8V(25NJ)
25.4
25
28.6
79"-394"
RSPA
13.6
12
/
47"-197"
RSPB
17
16.5
/
59"-394"
RSPC
22
21
/
118"-492"
RAX
13
10
15.9
24"-150"
RBX
17
13
19
50"-195"
RCX
22
16
25.5
100"-195"
R3VX
9.7
10
10.3
24"-150"
R5VX
15.8
16
17.5
50"-200"
