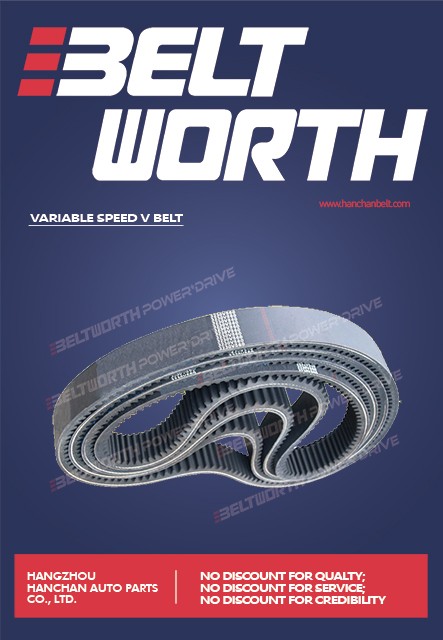

Description
The BELTWORTH Molded cogged Raw Edge Variable speed belts have been developed specifically for stepless variator drives. Increasing demands on variable speed belts due to the continuous increase of power transmission levels initiated
the development of the raw edge, cogged variable speed belts. The base compound consists of a polychloroprene rubberCR RUBBER） compound with traverse fibers. The high quality and extremely low-stretch polyester or aramid tension cord is embedded in a rubber compound. It is effectively supported by an upper and substructure.
Further increases in demand on the performance of drive elements and the trend towards designing ever smaller, space saving drive units, led to the development of the Double-sided, BELTWORTH Molded cogged Raw Edge Variable speed belts. Double-sided BELTWORTH variable speed belts allow for the smallest pulley diameters, even below standard recommendations. The Double-sided design improves heat emission, thereby significantly reducing the belt running temperature. The production methods and the structure of the belt have been derived from the BELTWORTH Molded cogged Raw Edge Variable speed. Depending upon the application and application range, this belt can also be equipped with layers of special cross-cord material in the base compound. The belt is Double-sided, with the depth and spacing of the cogs matching with the specific belt profile. The polyester or aramid tension cord ensures ideal power transmission, increased service life, and extremely low-stretch characteristics.
Detailed Description:

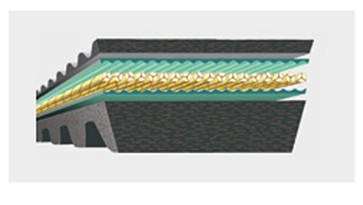

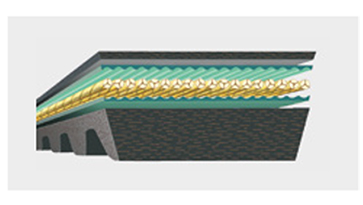

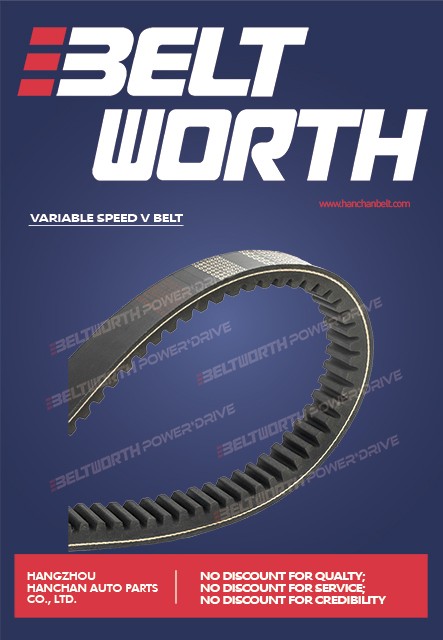

Structure:
Cover fabric: The Nylon 66 fabric
with high spandex as the tooth protection materials.
Cushioning layers: The imported CR
rubber or EPDM rubber embedding compound
Reinforcement:
The imported low-stretch polyester tension cord with excellent quality from
Japanese company or German company.
Belt base: The imported CR
rubber or EPDM rubber with traverse fiber compound.
Characteristics:
Efficient
power transmission with minimized wasteful heat generation.
Provides high stability and minimizes deflection.
Belts handle high temperatures very well.
Belts are oil resistant & anti-static.
Belts utilize stiff polyester cords for
length stability.
Belts are designed with textile fibers
oriented in the compound of the belt for strength.

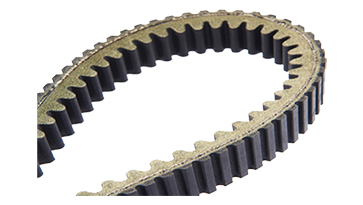

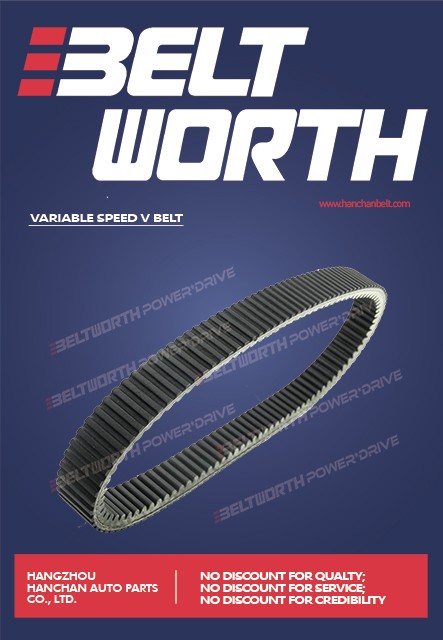

Double teeth Structure:
Cover fabric:
The Nylon 66 fabric
with high spandex as the tooth protection materials.
Cushioning layers: The imported CR
rubber or EPDM rubber embedding compound
Reinforcement:
The imported low-stretch polyester or aramid tension cord
Belt base: The imported CR
rubber or EPDM rubber with traverse aramid fiber compound.
Characteristics:
Extremely high acceptance of axial loads
High flexibility and flexing rate
Better heat emission
Use with small pulley diameters
High running smoothness with high belt
speeds
High traverse stability
Exceptionally smooth running
Wear and slip resistance
Application：
Industrial machinery: special drives
Variable speed drives: compact units
Printing machinery: multi-color offset
drives
Gearboxes: variable diameter pulley sets
Agricultural machinery: thresher drum
drives
Textile machinery: winding machinery
machine tools: lathes
Profile
|
Section |
Top Width(mm) |
Pitch Width(mm) |
Height(mm) |
Angle |
|
13 X 6 |
13 |
12 |
6 |
26 |
|
17 X 6 |
17 |
16 |
6 |
26 |
|
21 X 7 |
21 |
20 |
7 |
26 |
|
22 X 8 |
22 |
21 |
8 |
26 |
|
26 X 8 |
26 |
25 |
8 |
26 |
|
28 X 8 |
28 |
27 |
8 |
26 |
|
28 X 10 |
28 |
27 |
10 |
26 |
|
33 X 10 |
33 |
31.5 |
10 |
26 |
|
36 X 10 |
36 |
34.5 |
10 |
30 |
|
42 X 13 |
42 |
40 |
13 |
30 |
|
46 X 13 |
46 |
44.5 |
13 |
30 |
|
Section |
Top Width(mm) |
Pitch Width(mm) |
Height(mm) |
Angle |
|
W16 |
17 |
16 |
6 |
26 |
|
W20 |
21 |
20 |
7 |
26 |
|
W25 |
26 |
25 |
8 |
26 |
|
W31.5 |
33 |
31.5 |
10 |
26 |
|
W40 |
42 |
40 |
13 |
30 |
|
W50 |
52 |
50 |
16 |
30 |
|
W63 |
65 |
63 |
20 |
30 |
|
W80 |
83 |
80 |
26 |
30 |
|
W100 |
104 |
100 |
32 |
30 |
|
Sr. No |
Section |
Top Width(mm) |
Height(mm) |
Angle |
|
1 |

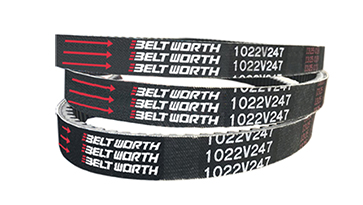

1022V |
16 |
6 |
22 |
|
2 |
1422V |
22 |
8 |
22 |
|
3 |
1922V |
30 |
11 |
22 |
|
4 |
2322V |
36.5 |
12 |
22 |
|
5 |
1926V |
30 |
11 |
26 |
|
6 |
2926V |
46 |
14 |
26 |
|
7 |
3226V |
51 |
14 |
26 |
|
8 |
2530V |
40 |
15 |
30 |
|
9 |
3230V |
51 |
16 |
30 |
|
10 |
4430V |
70 |
17 |
30 |
|
11 |
4036V |
64 |
18 |
36 |
|
12 |
4436V |
70 |
18 |
36 |
|
13 |
4836V |
76 |
22 |
36 |
